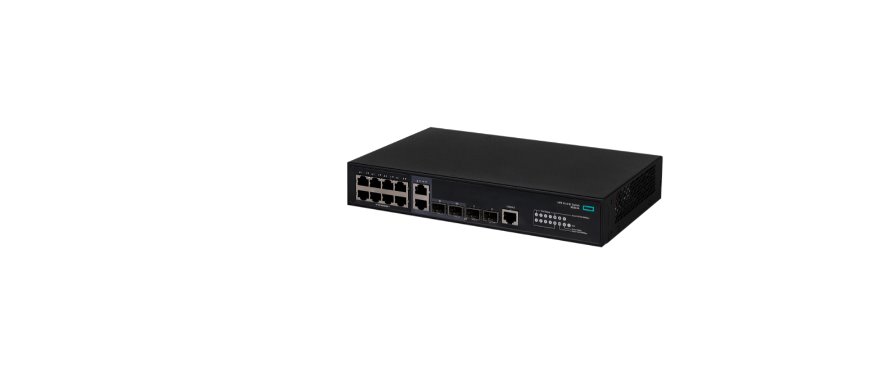

HPE 5140 8G 2SFP 2GT EI Switch

Popis produktu:

8 RJ-45 autosensing 10/100/1000 ports
2 SFP Ports, 2 GT Ports (4 port combo unit, can use 1 pair of 2 ports at a time) min=0 \ max=2 SFP Transceivers
Power supply included
1U - Height

Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless.
It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
It includes embedded network management capabilities with Smart Management Center (SmartMC).
It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.

Power consumption15W (Maximum), 8W (Idle)
Note:
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Heat dissipationMaximum: 27.3/51.2 BTU/hr. (28.8/54 kJ/hr.)

Input voltageAC Voltage: 100 VAC–240 VAC

Ports8 RJ-45 autosensing 10/100/1000 ports;

Duplex: Ports 1-8 support 10BASE-T/100BASE-TX, 1000BASE-T (full only);

2 combo ports with 2 SFP or 2 1GbE ports and 2 SFP ports;

1 RJ-45 serial console port

Latency1000 Mb latency: < 5 µs
10 Gbps latency: < 3 µs

Routing capabilitiesTable Size: 1024 entries;
MAC address: 16,384 entries IPv6 Ready Certified

Switching capacity24 Gbps

Stacking capabilitiesIRF 9 switches

Throughput18 Mpps

Memory and processor512 MB SDRAM, 256 MB flash

Power supply nameAt least 1 power supply is required (not included, must be ordered separately)

PoE capability370W PoE+ Maximum, depending on model

Operating temperature23°F to 113°F (–5°C to 45°C)

Management featuresHPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager

WarrantyLimited lifetime warranty. See the warranty duration guide.

Detailed product description8 RJ-45 autosensing 10/100/1000 ports
2 SFP Ports, 2 GT Ports (4 port combo unit, can use 1 pair of 2 ports at a time) min=0 \ max=2 SFP Transceivers
Power supply included
1U - Height

Weight1.5 kg (3.31 lbs)

Dimensions4.36 x 10.47 x 16 cm (1.72 x 17.32 x 6.3 in)
